ASR-3000 Series Programmable AC/DC Power Source

Category: ,
Tags:

The ASR-3000 series is an AC+DC power source, featuring high-speed DC voltage rising and falling time (≦100us).ASR-3000 is ideal for the development of On-board Chargers, Server Powers, LED modules, AC Motors, AC Fans, UPS, and various electronic components, as well as for testing applications of automotive electrical equipment and home appliances.There are four models of the series:

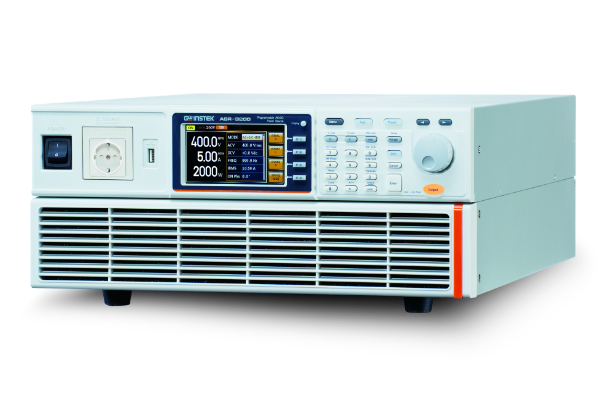

1. ASR-3200(2kVA)

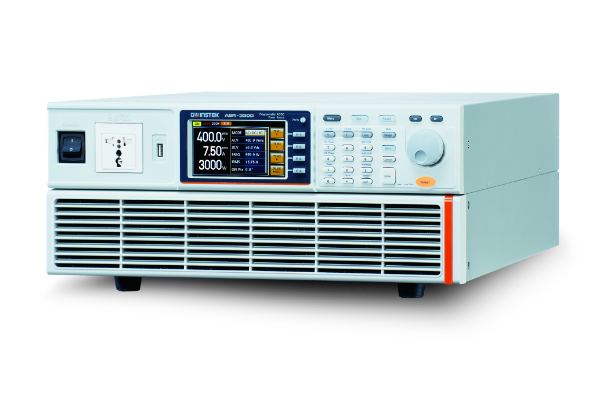

2. ASR-3300(3kVA)

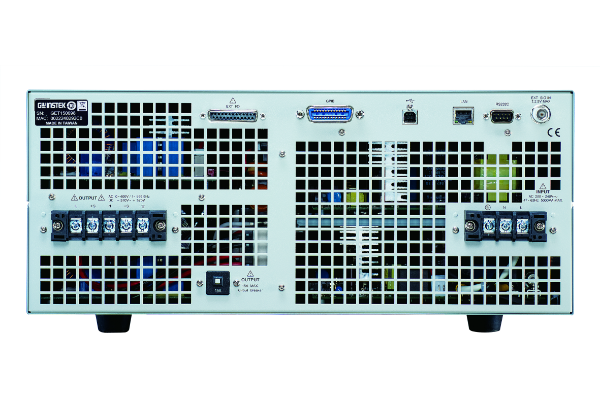

3. ASR-3400(4kVA)

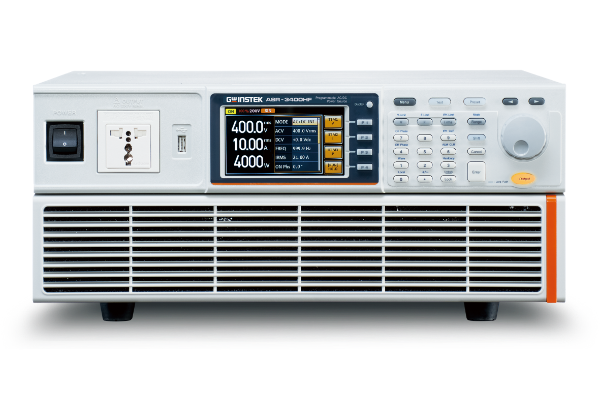

4. ASR-3400HF(4kVA, Frequency upto 5kHz)

The series can provide rated power output during AC output and DC output. Ten ASR-3000 output modes are available.

  • AC power output mode (AC-INT Mode)
  • DC power output mode (DC-INT Mode)
  • AC/DC power output mode (AC+DC-INT Mode)
  • External AC signal source mode (AC-EXT Mode)
  • External AC/DC signal source mode (AC+DC-EXT Mode)
  • External AC signal superimposition mode (AC-ADD Mode)
  • External AC/DC signal superimposition mode (AC+DC-ADD Mode)
  • External AC signal synchronization mode (AC-SYNC Mode)
  • External AC/DC signal synchronization mode (AC+DC-SYNC Mode)
  • External DC voltage control of AC output mode (AC-VCA)

Output Rating: AC 0 – 400 Vrms, DC 0 – ± 570 V
Output Frequency up to 999.9 Hz (ASR-3400HF up to 5000Hz)
DC Output (100% of Rated Power)
Measurement Items: Vrms, Vavg, Vpeak, Irms, IpkH, Iavg, Ipeak, P, S, Q, PF, CF
Voltage and Current Harmonic Analysis(THDv, THDi)
Remote Sensing Capability
OCP, OPP, OTP, AC Fail Detection and Fan Fail Alarm
Support Arbitrary Waveform Function
Output Capacity: 2kVA/ 3kVA/4kVA
Customized Phase Angle for Output On/Off
Sequence and Simulation Function(up to 10 sets)
Interface(std): USB, LAN, RS-232, GPIB
Built-in External Control I/O and External Signal Input
Built-in Output Relay Control
Memory Function (up to 10 sets)
Built-in Web Server

https://www.gwinstek.com/en-global/products/downloadSeriesSpec/2216

Standard Accessories



  • CD (User Manual/ Programming Manual)
  • Safety Guide
  • Input Terminal Cover
  • Output Terminal Cover Include Remote Sensing
  • GRA-442-E Rack Mount Adapter(EIA)
  • GTL-246 USB Cable



Optional Accessories (factory installed)

  • European Output Outlet
Optional Accessories

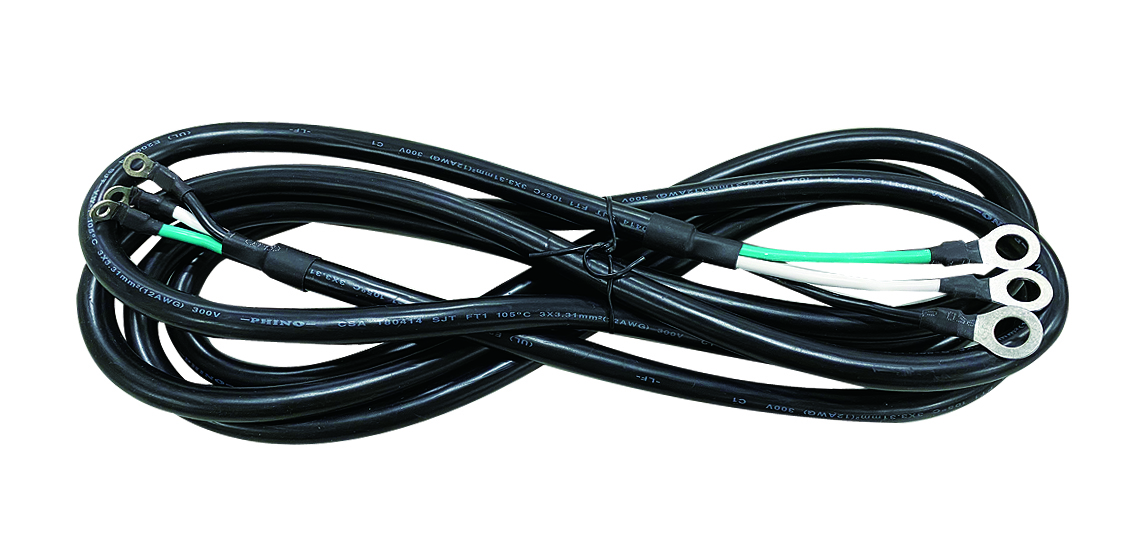

GPW-005 Power Cord, 3m, 105℃, UL/CSA Type
GPW-006 Power Cord, 3m, 105℃, VDE Type （ASR-3200 , ASR-3300 Use Only）
GPW-007 Power Cord, 3m, 105℃, PSE Type

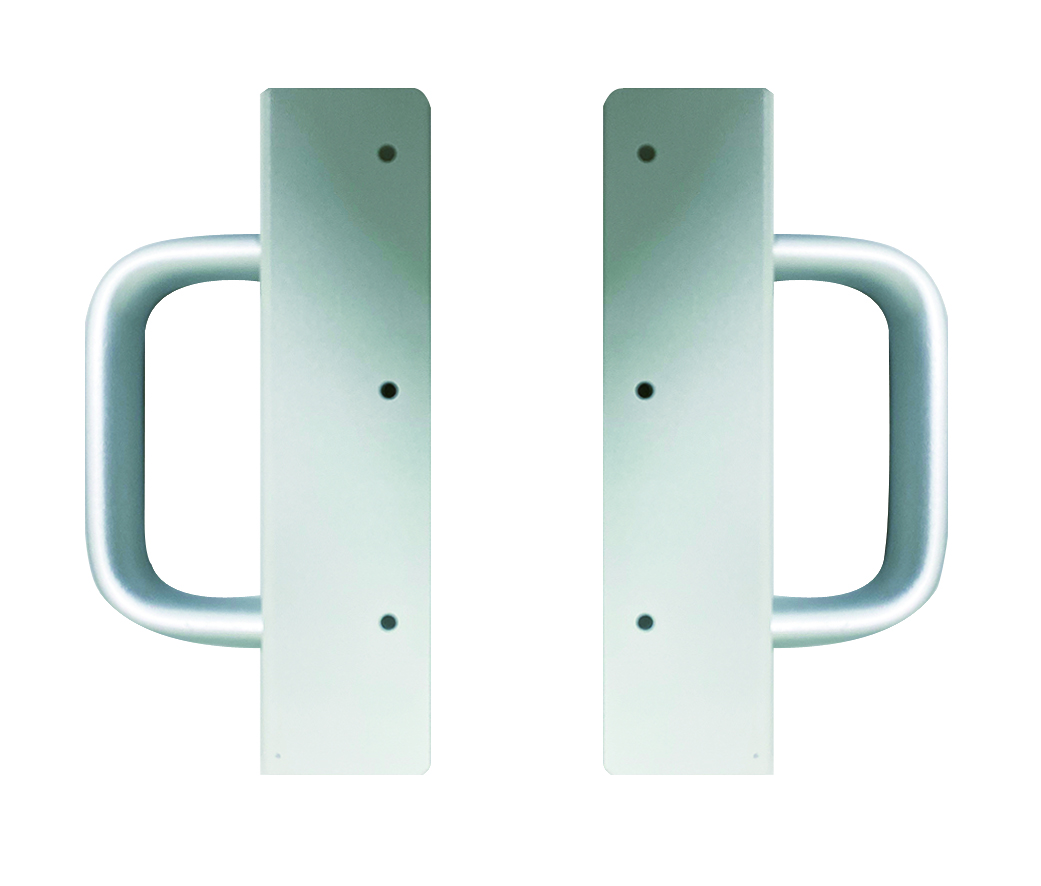

GRA-442-J Rack Mount Adapter(JIS)

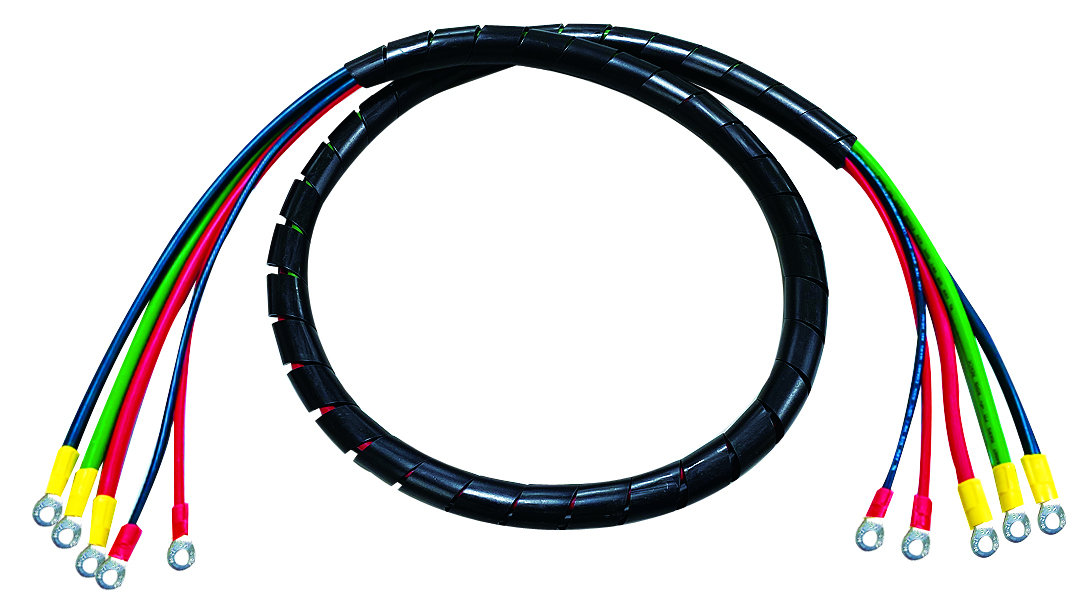

GTL-137 Output Power Wire(Load wire_10AWG: 50A, 600V/ Sense wire_16AWG: 20A, 600V)
GTL-232 RS232C cable, approx. 2m
GTL-248 GPIB Cable, approx. 2m

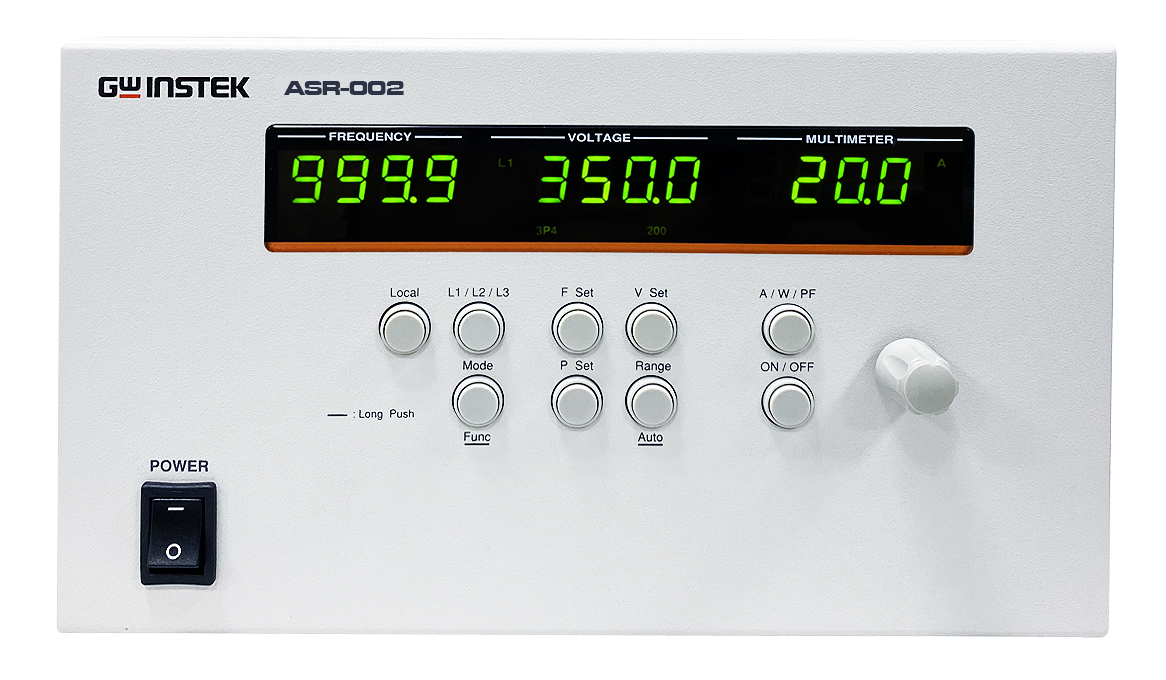

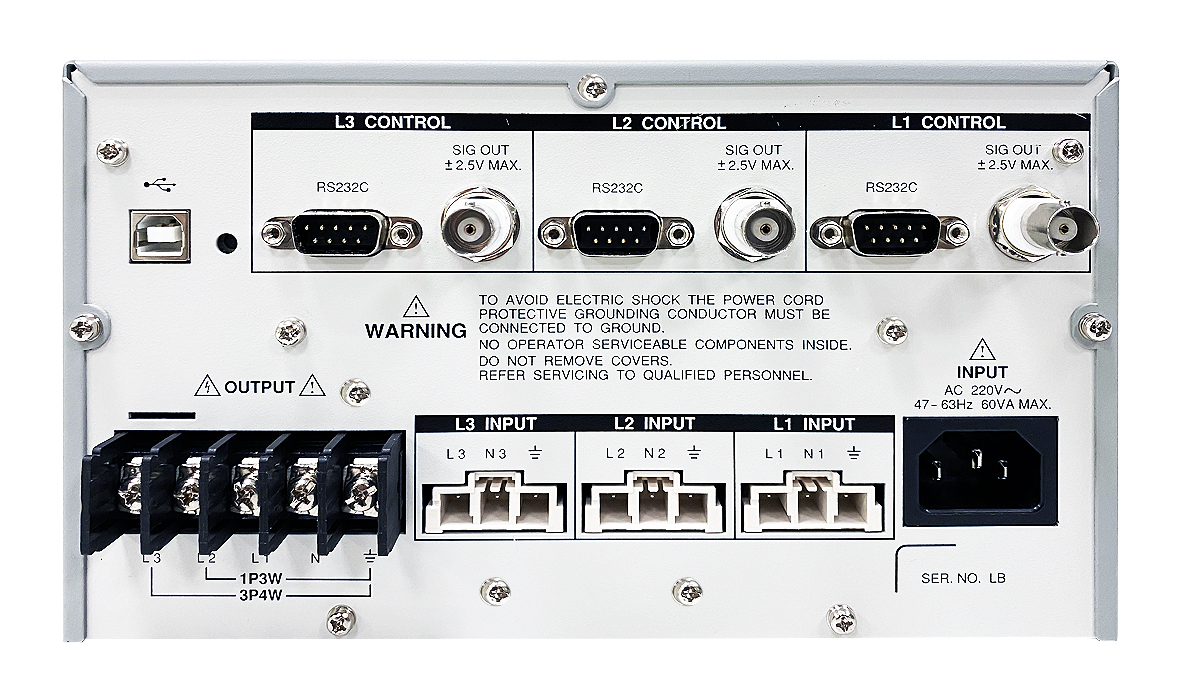

ASR-002* External Three Phase Control Unit
APS-008 Air inlet filter
ASR-C003 Modbus TCP feature
Model Power Rating Max. Output Current Max. Output Voltage
ASR-3200 2kVA 20A / 10A 400Vrms / ±570 Vdc
ASR-3300 3kVA 30A / 15A 400Vrms / ±570 Vdc
ASR-3400 4kVA 40A / 20A 400Vrms / ±570 Vdc
ASR-3400HF 4kVA 40A / 20A 400Vrms / ±570 Vdc
Document Type Description Download Link
User Manual The user manual of ASR-3000 series DOWNLOAD
User Manual The user manual of ASR-002 DOWNLOAD
Programming Manual The programming manual of ASR-3000 series DOWNLOAD
Assembly Manual The Rack Adapter assembly manual of GRA-442 DOWNLOAD
PC Software Compatible with ASR-3000 FW – V1.18 or later (Must install NI-VISA and Dot Net before executing) DOWNLOAD
LabVIEW Driver ASR-2000/3000 LabVIEW Driver (for LabVIEW 2009) DOWNLOAD
Edited Sample Files for ISO-16750-2 ASR-2000 Series Edited Sample Files for ISO-16750-2 DOWNLOAD
ARB tool for Excel Utilizing command of “: DATA|TRACe:WAVe[:DATA]” sending 4096 rows in Excel to ASR-Series by USB interface. DOWNLOAD
USB Driver The USB Driver of ASR-2000/3000 Series DOWNLOAD
Datasheet The datasheet of ASR-3000 Series DOWNLOAD
Brochure ASR-002 External Three Phase Control unit for 1P2W, 1P3W, 3P4W output DOWNLOAD
Brochure The brochure of ASR-3000 Series DOWNLOAD
