Description
The PSH-Series is single output from 360W to 1080W, programmable switching DC power supplies. OVP, OCP, and OTP protect the power supply and loads from unexpected conditions. Remote sensing adds an extra level of precision by compensating cable losses between loads. The bright LCD with simultaneous parameter outputs allows effortless operation. Self-test and software calibration features also reduce maintenance efforts. SCPI commands and LabVIEW driver access through the RS-232C or the optional GPIB interface allow remote control and ATE software development. Modular architecture, dedicated rear-panel output, and the 19 inch 4U rack mounting option ensure that the PSH-Series is optimized for large systems.
| Programmable Switching D.C. Power Supply | ||||
|
Output Watts (W)
|
Output Volts (V)
|
Output Amps (A)
|
Weight (kg)
|
|
|
PSH-2018A
|
360W
|
0~20V
|
0~18A
|
3.3kg
|
|

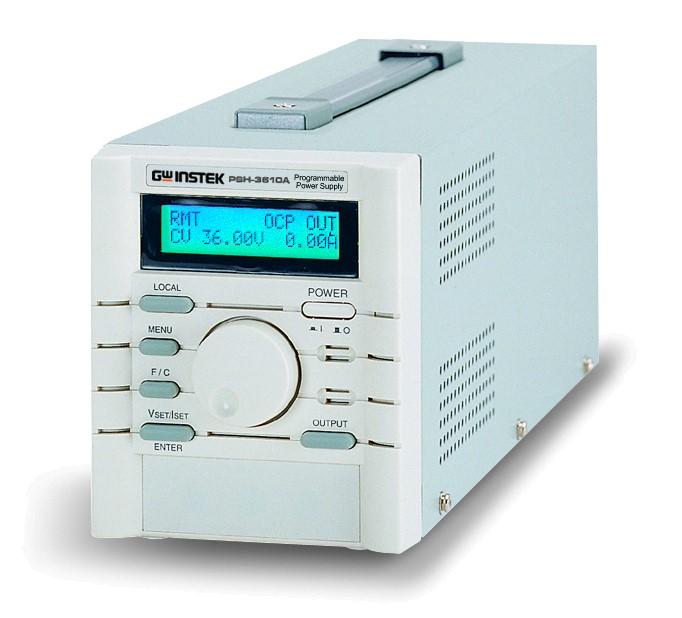

PSH-3610A
|
360W
|
0~36V
|
0~10A
|
3.3kg
|
|

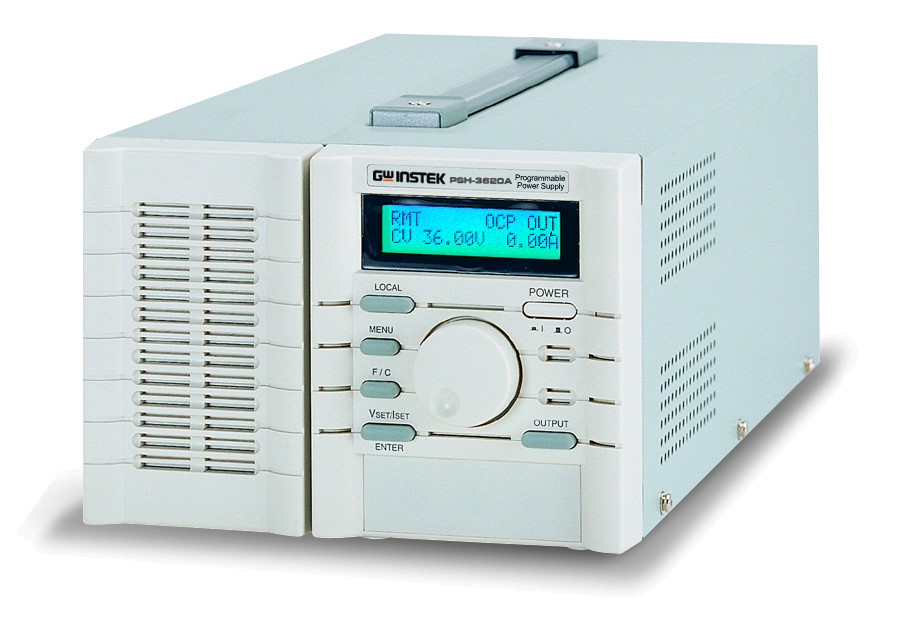

PSH-3620A
|
720W
|
0~36V
|
0~20A
|
6.2kg
|
|

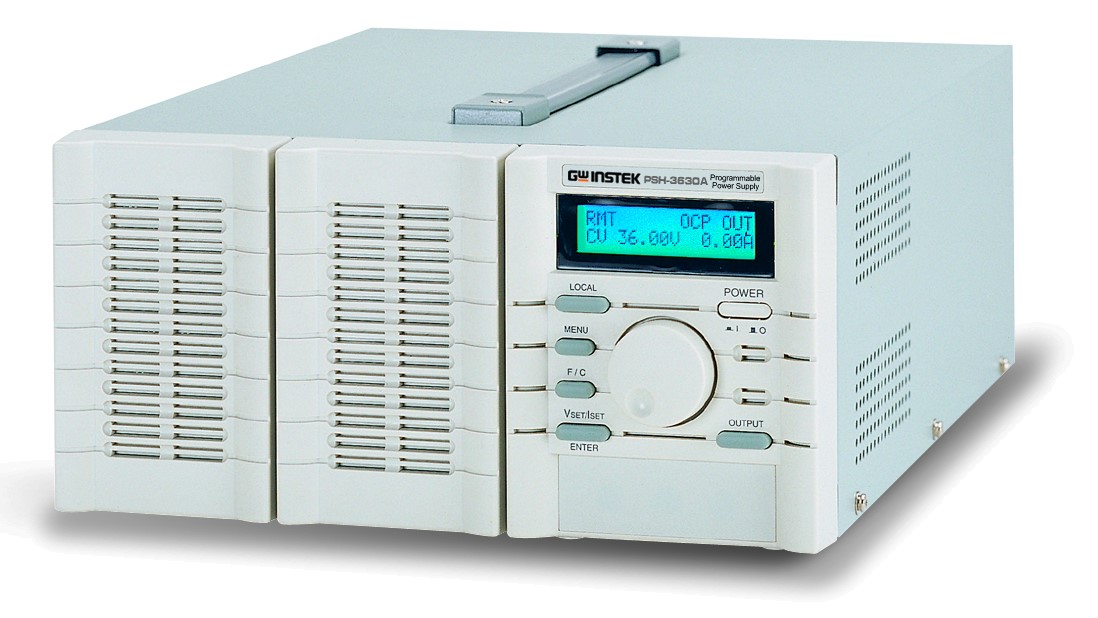

PSH-3630A
|
1080W
|
0~36V
|
0~30A
|
9.3kg
|
