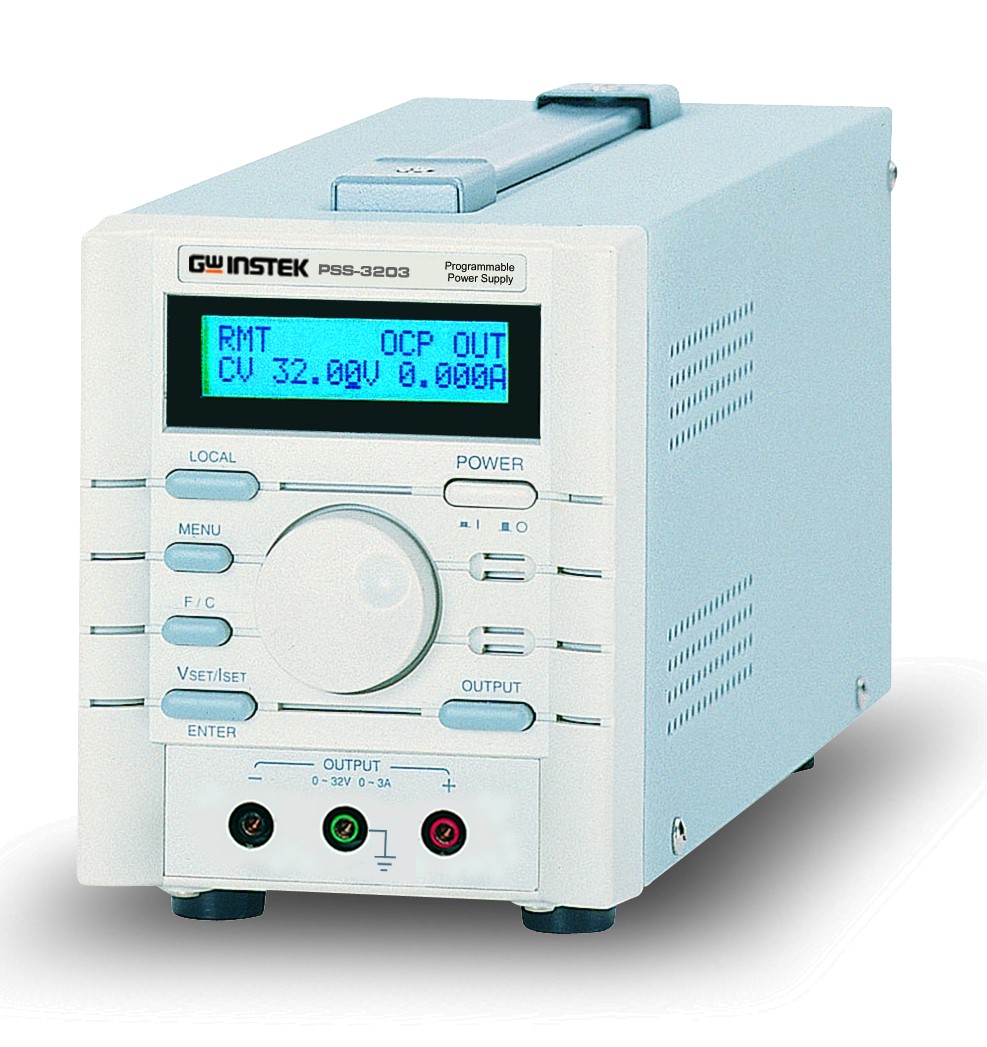

PSS-Series Programmable Linear D.C. Power Supply

The PSS-Series is single output, 96W or 100W, programmable linear DC power supplies. OVP, OCP, and OTP protect the PSS series and their loads from unexpected conditions. The LCD panel simultaneously displays output and other parameters; the regulated cooling fan ensures low noise for comfortable operation. RS232C and GPIB interfaces, SCPI command sets, and LABVIEW drivers make remote control and ATE software development easier. (Note: only either RS-232C or GPIB can be installed) The compact PSS series is suitable for any high resolution bench-top or rack mount application.

https://www.gwinstek.com/en-global/products/downloadSeriesSpec/1392

User manual x 1, Power cord x 1
Test lead GTL-104A x 1(PSS-2005) or GTL-105A x 1(PSS-3203)
European Test Lead GTL-204A x 1 (PSS-2005) or GTL-203A x 1 (PSS-3203)

Optional Accessies
GTL-232 RS232C Cable, 9-pin Female to 9-pin, null Modem for Computer
GRA-408 Rack Adapter Panel

• Digitized Programmable Interface
• High Resolution 10mV, 1mA
• High Stability, Low Drift
• Over-Voltage, Over-Current, Over Temperature Protection
• Intelligent Fan Control (Changes by Output Power)
• Built-in Buzzer Alarm
• Labview Driver
• Standard Interface: RS-232C
• Optional Interface: GPIB (IEEE-488.2)
• Optional European Jack Type Terminal
