TD6600 is an intelligent instrument dedicated to testing the technical performance of relay protection testers. The instrument can accurately measure multiple channels of AC/DC voltages, currents, and small signal voltages. Its accuracy is Class 0.02. The user can complete the full-function test of the relay protection tester of Class 0.05 and below with this instrument. Compared with traditional methods, this instrument has the characteristics of simple connection and convenient operation.
1. Summary
TD6600 is an intelligent instrument dedicated to testing the technical performance of relay protection testers. The instrument can accurately measure multiple channels of AC/DC voltages, currents, and small signal voltages. Its accuracy is Class 0.02. The user can complete the full-function test of the relay protection tester of Class 0.05 and below with this instrument. Compared with traditional methods, this instrument has the characteristics of simple connection and convenient operation.
2. Features
6-channel of AC/DC Voltage Measurement：200 mV～1100 V
6-channel of AC/DC Current Measurement：1 mA～60 A
12-channel of Small Signal Measurement：1 mV～7.7 V
Frequency：10 Hz～1 kHz
Phase：0.000°～359.999°
Voltage/Current Accuracy：Class 0.02
Harmonic/Ripple Measurement Function
4 Pairs of Binary Input, 4 Pairs of Binary Output
Time Measurement Function
3. Application

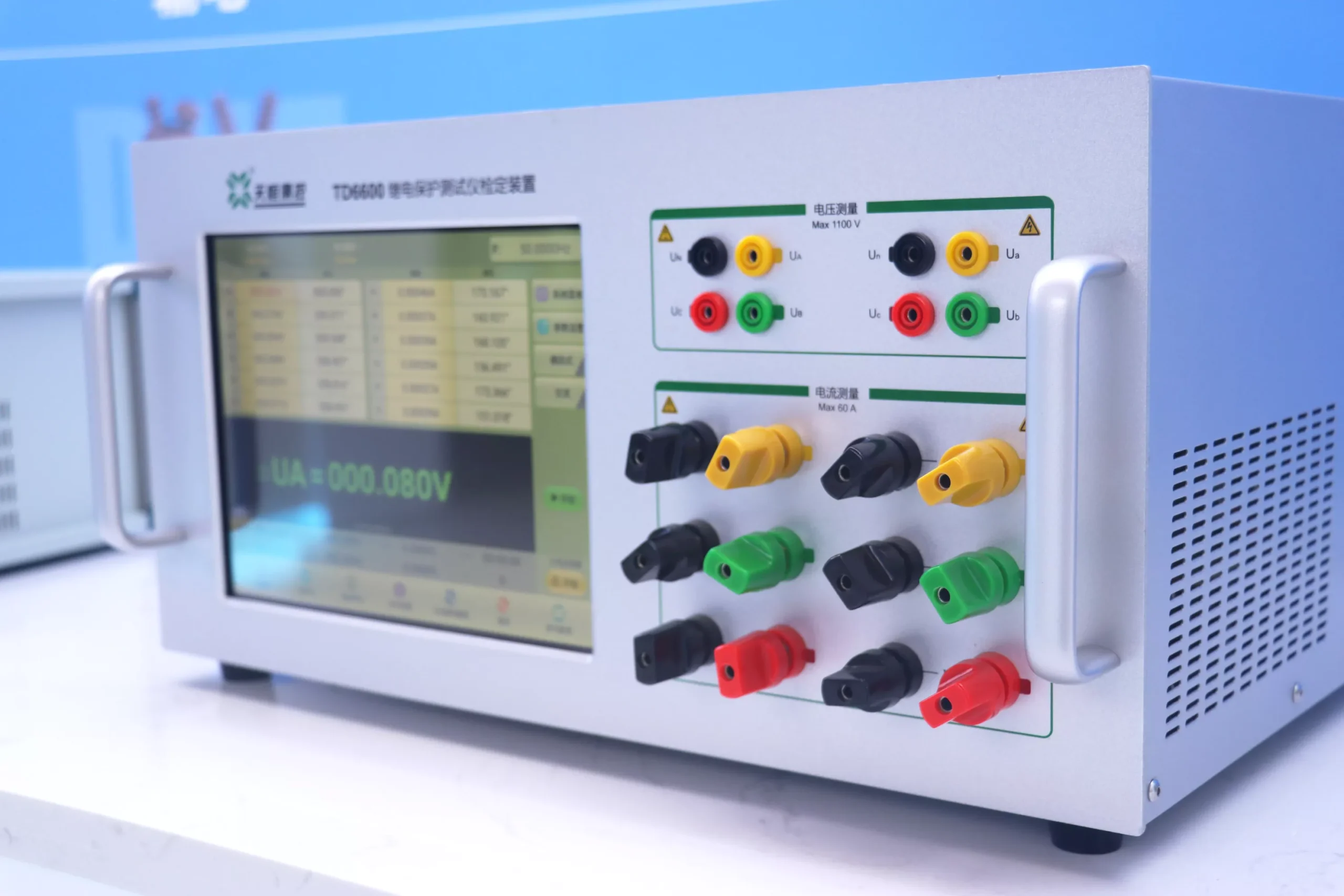

TUNKIA TD6600 Relay Protection Tester Calibration Device
